Table 004, Agency Codes and Descriptions
Agency Codes and Descriptions is Table 004 on the MASC Tables-Update menu. This option is used to add, replace, or delete Agency codes and descriptions for NFC-assigned Agency codes.

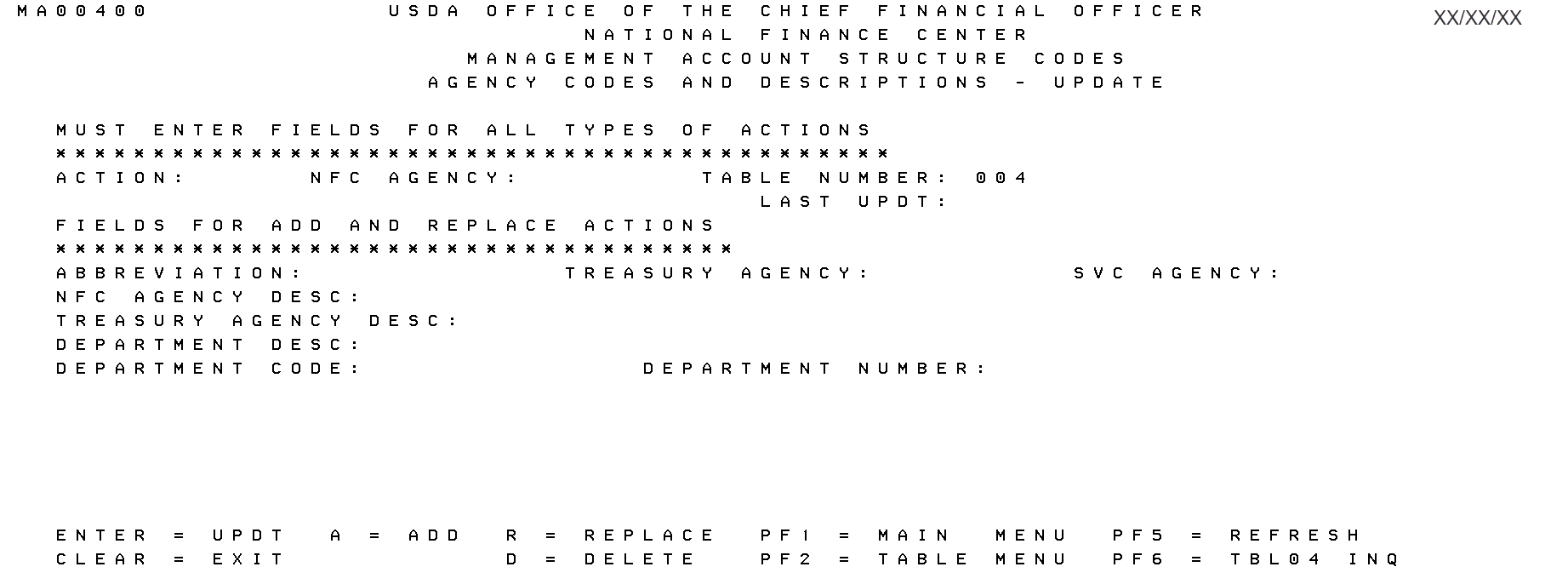

To add data to Table 004 Update Screen, complete the fields as follows:
Field |
Description/Instruction |
|---|---|
Action |
Required, alpha, 1 position Type . |
NFC Agency |
Required, alphanumeric, 2 positions Type the NFC-assigned Agency code. See Table 004 (MASC Tables-Inquiry), Agency Codes and Descriptions, for a list of NFC-assigned Agency codes. |
Table Number |
System generated Populated with the table number selected on the MASC Update Menu screen. |
Last Updt |
System generated Populated with the date the table was last updated. |
Abbreviation |
Required, alpha, 5 positions maximum Type the abbreviation of the above entered Agency. |
Treasury Agency |
Required, numeric, 2 positions Type the Treasury-assigned Agency code. |
Svc Agency |
Required, alphanumeric, 2 positions Type the NFC-assigned Agency code. |
NFC Agency Desc |
Required, alpha, 51 positions maximum Type the description for the NFC Agency. |
Treasury Agency Desc |
Required, alpha, 47 positions maximum Type the description for the Treasury Agency. |
Department Desc |
Required, alpha, 40 positions maximum Type the Department description of the Federal Agency. |
Department Code |
Required, alpha, 2 positions Type the abbreviated Department code of the Federal Agency. |
Department Number |
Required, numeric, 2 positions Type the Department number of the Federal Agency. |
To navigate in the system, press the applicable key displayed at the bottom of the screen.
