Table 003, Object Class Descriptions
Object Class Descriptions is Table 003 on the MASC Tables-Update menu. This option is used to add, replace, or delete object class descriptions to MASC.

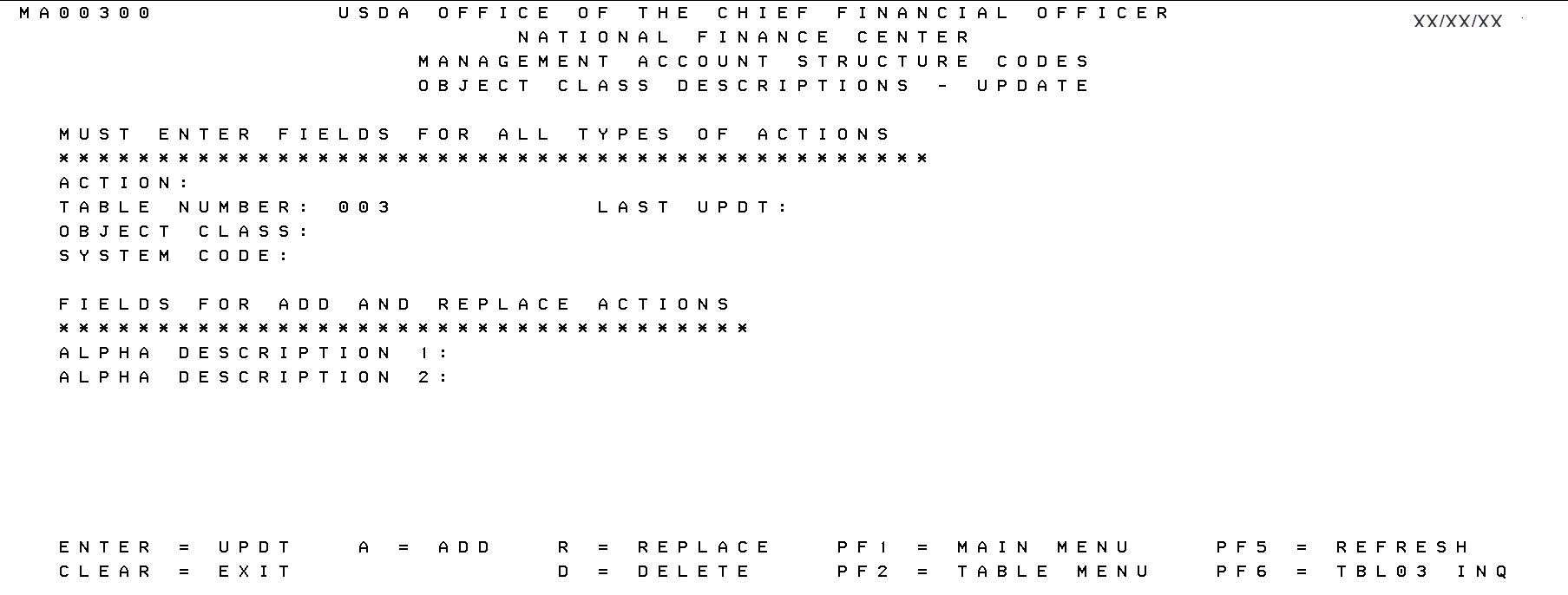

To add data to Table 003 Update Screen, complete the fields as follows:
Field |
Description/Instruction |
|---|---|
Action |
Required, alpha, 1 position Type . |
Table Number |
System generated Populated with the table number selected on the MASC Update Menu screen. |
Last Updt |
System generated Populated with the date the table was last updated. |
Object Class |
Required, numeric, 4 positions Type the object class code. The first 2 digits are the object class major and the last 2 digits are the object sub major. See the Budget Object Classification Codes (BOC) manual at , for a list of codes. |
System Code |
Required, numeric, 2 positions Type the NFC compatible application code. This application code identifies which feeder system is valid for the object class code. See MASC Table 063, Application Acronym Assignment Table, for a list of application/system codes. Whenever an object code is valid for all feeder systems, type . |
Alpha Description 1 |
Required, alpha, 40 positions maximum Type the applicable object class code description. |
Alpha Description 2 |
Optional, alpha, 40 positions maximum Type the applicable object class code description. |
To navigate in the system, press the applicable key displayed at the bottom of the screen.
